Choose the modules.
Start with the frame, then decide which panels, cooling configuration and accessories belong in your build. The design gives you a foundation to adapt rather than one fixed appearance.
EXTRUFRAME / Room to explore
TITAN
ATX / Micro-ATX / Mini-ITX · Full-size
The largest ExtruFrame brings the family’s modular approach to full-size builds. Start with an ATX motherboard, or use Micro-ATX and Mini-ITX hardware to shape your own layout.
3MF FILES / PHYSICAL CASE · CROWDFUNDING COMING SOON
A frame.
Your configuration.
TITAN combines an open structure with optional modules. Choose your cooling, install the SKÅDIS pegboard if you need it and select armor to shape the silhouette.
PETG-CF, by default.
Our case components use carbon-fiber-filled PETG as the default specification. Other engineering materials, including ASA-CF, ABS-GF, PET-CF and PPS-CF, can be considered by request.
Materials & manufacturingGive it your signature.
Selected editable STP components are planned for custom front-panel and PSU-cover designs. The digital campaign offers the 3MF route for customers printing their own parts.
DESIGN STUDY / FIVE VIEWSEvery angle.
Every angle.
Every detail.
Explore TITAN through five clean technical views. Switch perspectives to see the frame, mounting surfaces and modular construction beyond the finished build.
EXTRUFRAME / TITANSTRUCTURE SERIES ●
++++POWER / COOLING / 01VIEW 01 / 05

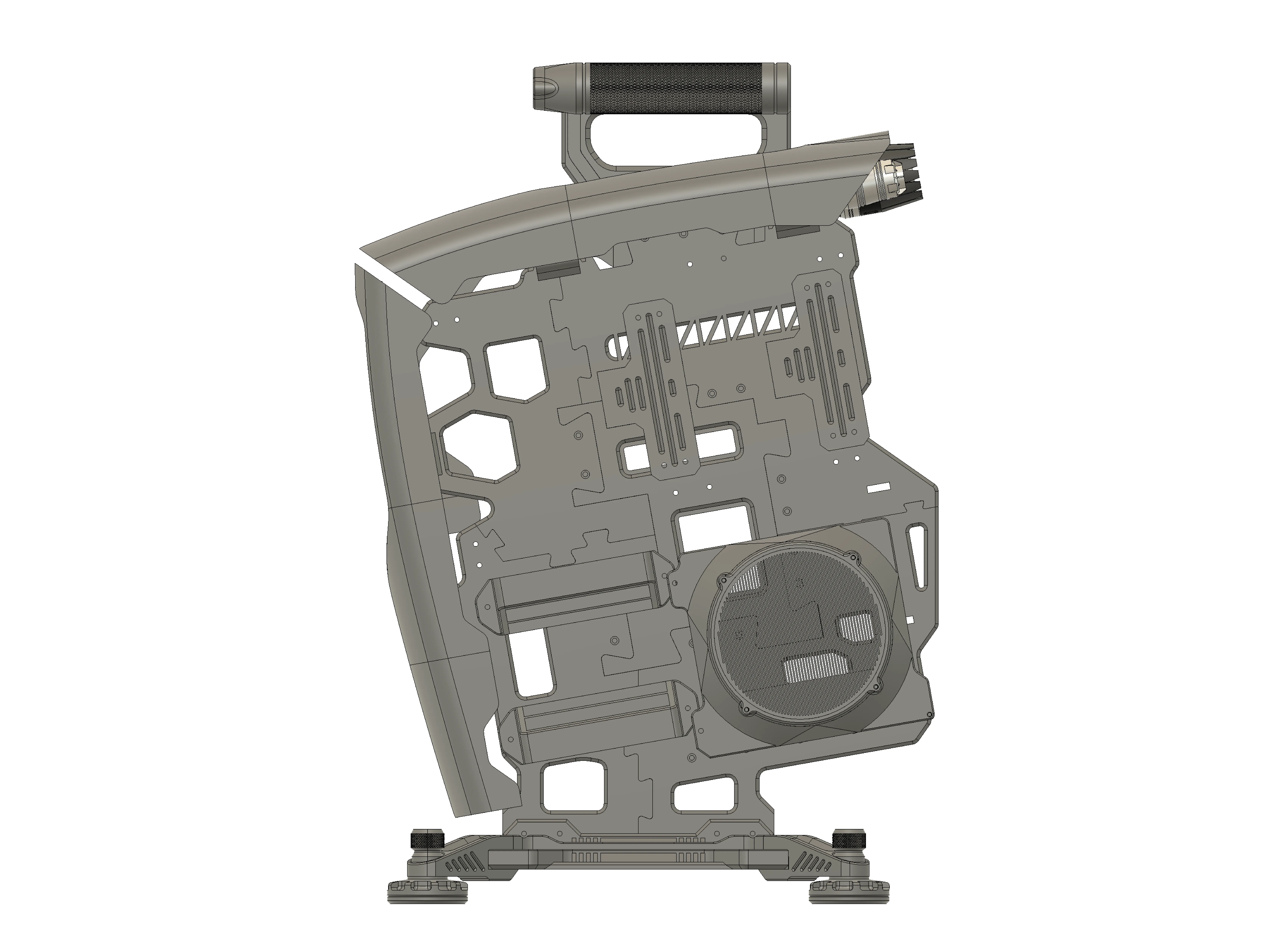

01 / POWER & COOLING SIDE
Hardware and optional modules vary by configuration.
Power. Cooling. Storage.
This side provides the mounting areas for the power supply, liquid cooling and drives. The motherboard mounts on the opposite side, shown in view 03.
PSU / liquid cooling / drive mounts
Design visualization · not a dimensioned drawing.Hardware and optional modules vary by configuration.
++++FRONT / 02VIEW 02 / 05

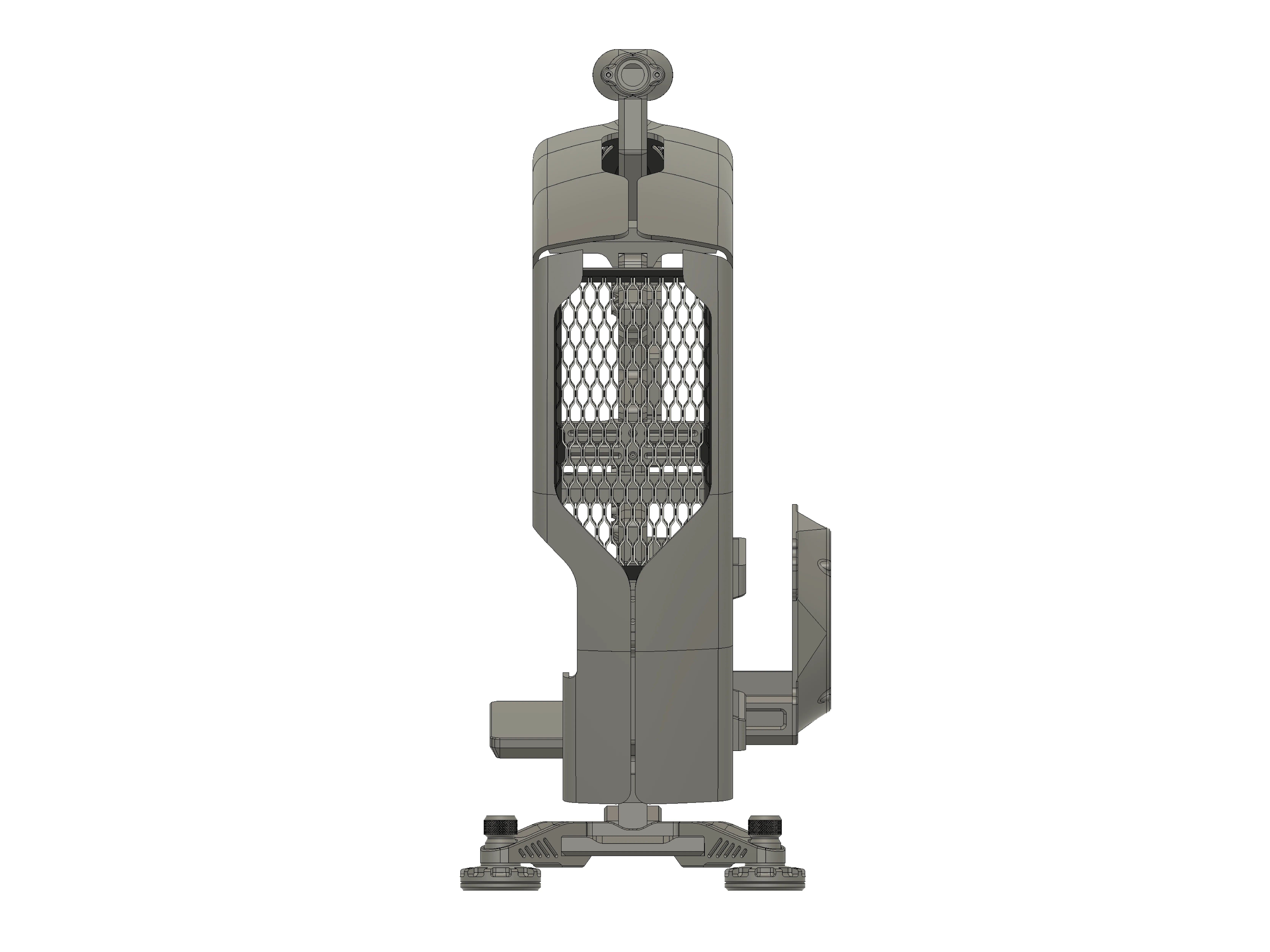

02 / FRONT
Hardware and optional modules vary by configuration.
A clear visual identity.
The front grille brings a consistent design language to the frame. This view shows the relationship between the grille, outer structure and base.
Front grille / frame interface
Design visualization · not a dimensioned drawing.Hardware and optional modules vary by configuration.
++++MOTHERBOARD / 03VIEW 03 / 05

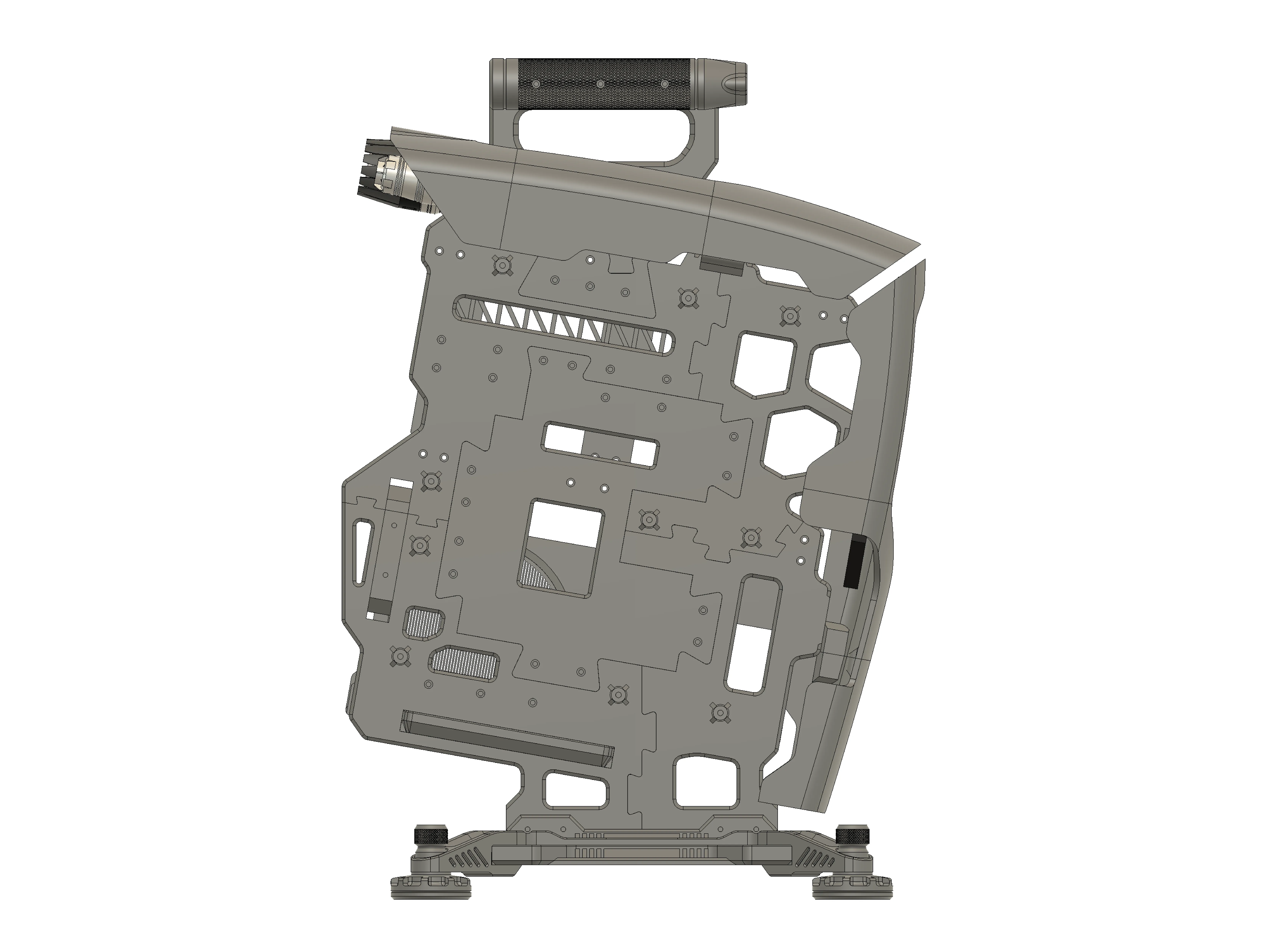

03 / MOTHERBOARD SIDE
Hardware and optional modules vary by configuration.
The motherboard foundation.
The motherboard mounting side supports ATX, Micro-ATX and Mini-ITX boards. Power, liquid cooling and drive mounting areas are on the opposite side, shown in view 01.
ATX / Micro-ATX / Mini-ITX mounting
Design visualization · not a dimensioned drawing.Hardware and optional modules vary by configuration.
++++REAR / 04VIEW 04 / 05

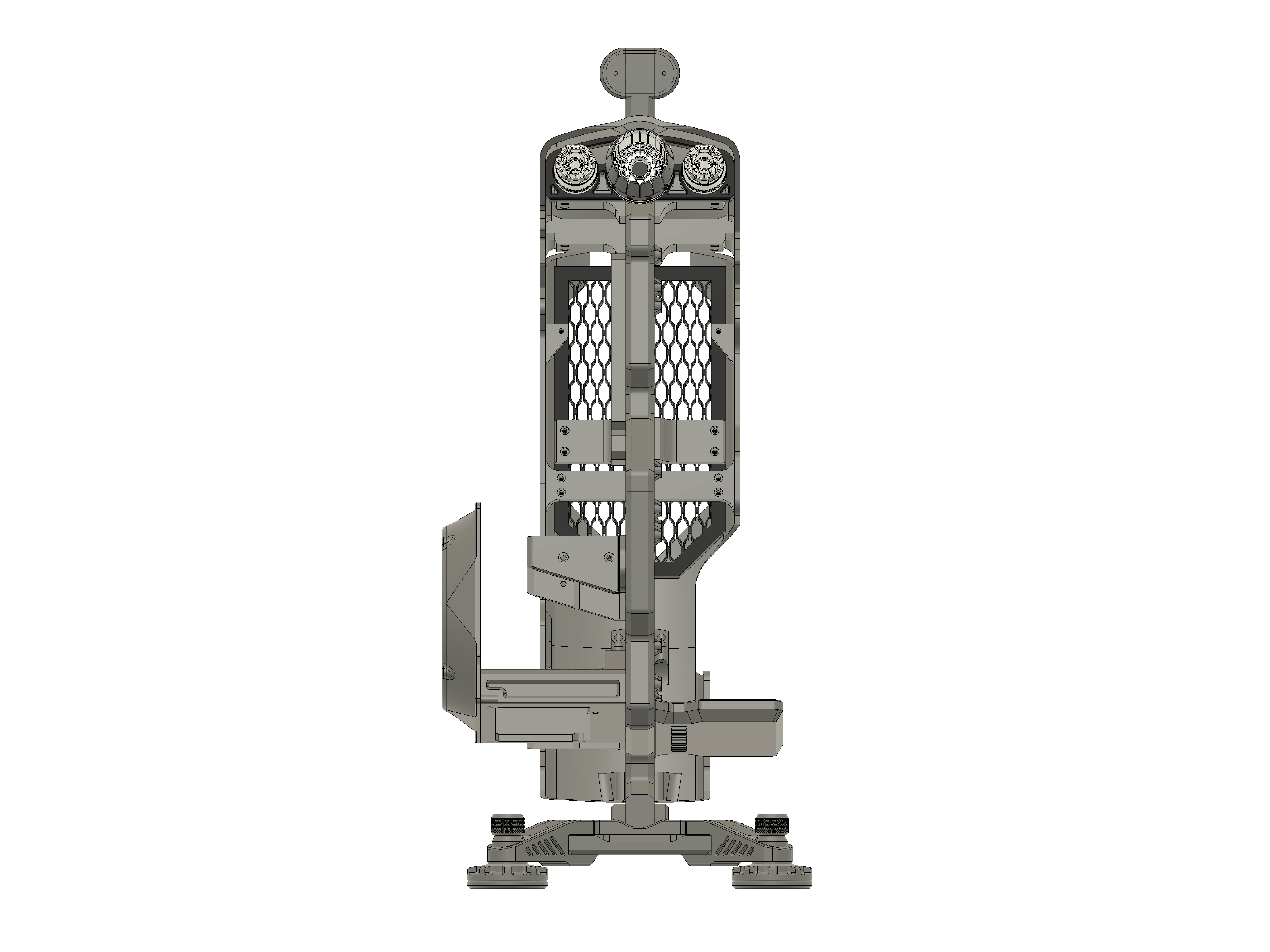

04 / REAR
Hardware and optional modules vary by configuration.
Structure from every angle.
A rear view of the frame, grille and supporting base. Individual modules define the configuration; the views illustrate the design shown.
Rear structure / support base
Design visualization · not a dimensioned drawing.Hardware and optional modules vary by configuration.
++++TOP / 05VIEW 05 / 05

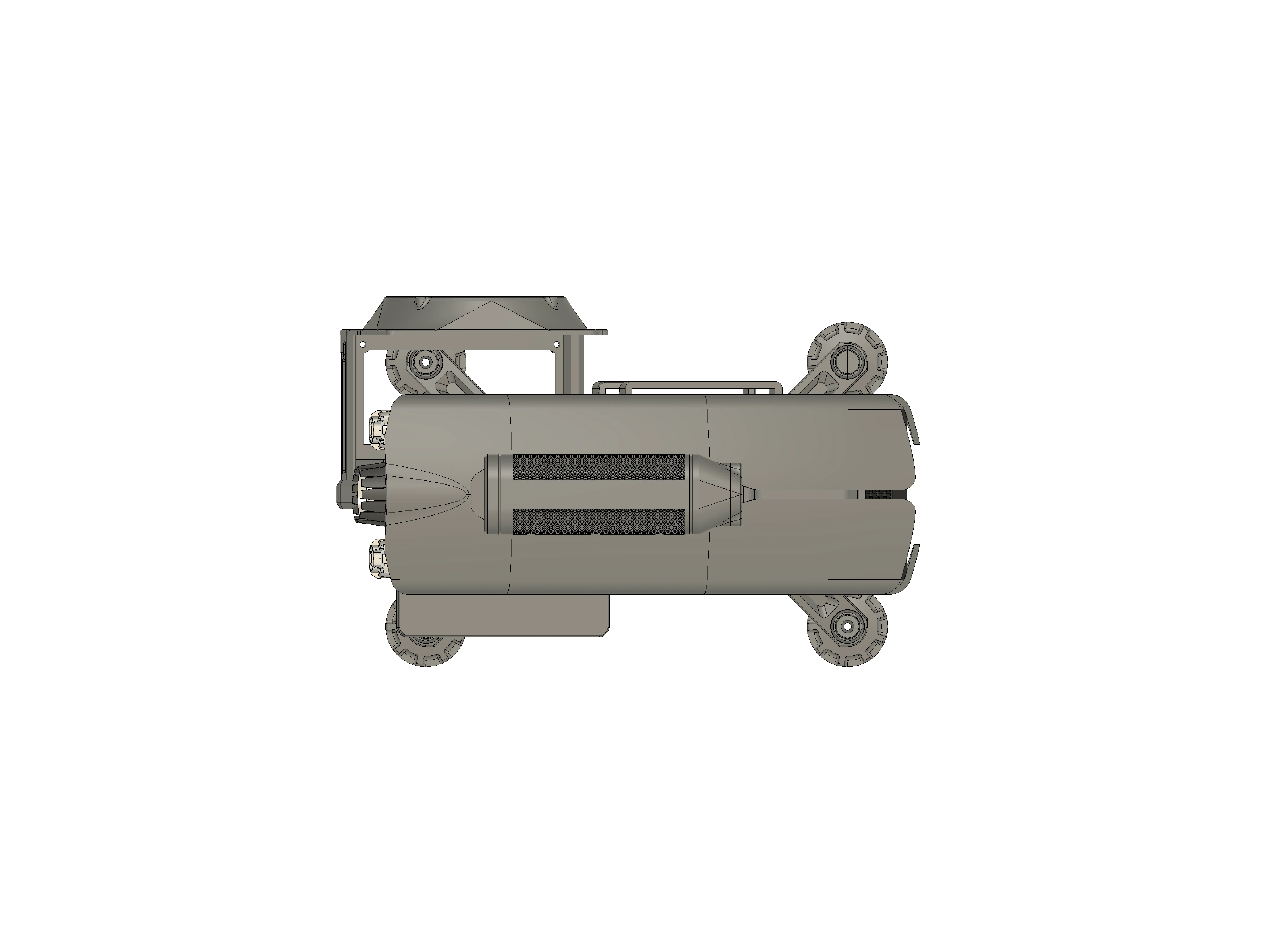

05 / TOP
Hardware and optional modules vary by configuration.
Understand the footprint.
The top view reveals the relationship between the central structure and the supporting feet. Use it alongside the side views to understand the overall form.
Frame / base arrangement
Design visualization · not a dimensioned drawing.Hardware and optional modules vary by configuration.
EXTERNAL DIMENSIONS588 × 434 × 242mm
SIZE REFERENCE / TITAN
Case dimensions · plan your space.
Shown configuration for reference. Confirm supported hardware in the compatibility section below.
TITAN
hardware support.
The key supported dimensions for this case. For manufacturer size examples, cable planning and more detail, visit the full compatibility guide.
- External case dimensions
- 588 × 434 × 242 mm
- ATX · 305 × 244 mm
- Supported
- Micro-ATX · up to 244 × 244 mm
- Supported
- Mini-ITX · 170 × 170 mm
- Supported
- Graphics card · up to 380 mm
- Supported
- Graphics card · 1–4 slots
- Supported · no thickness cap
- 240 / 360 mm liquid cooling
- Supported
- Radiator + fan thickness
- No case-imposed limit
- CPU air-cooler height
- No case-imposed limit
- ATX PSU · default length
- 140 mm
- ATX PSU · alternative lengths
- 150 / 160 / 170 / 180 mm
- SKÅDIS pegboard
- Optional
- Armor panels
- Optional
- Default component material
- PETG-CF
External dimensions describe the case. Allow additional room for hardware, connectors and your selected modules.
Full compatibility & dimension guideTITAN, in full view.
Two-column views of the assembled case, optional modules and open structure. Select an image for a closer look.
TITAN · assembled view
View +Rendered build configuration showing the open-frame design. PC components illustrate a possible assembly; campaign contents will be listed separately.
TITAN · without hardware
View +A closer view of the mounting structure and component interfaces, showing how the modular layout comes together.
TITAN · pegboard and hardware
View +Optional SKÅDIS panel shown in position. Add the mounting surface or leave the frame open to suit your configuration.
TITAN · reverse pegboard view
View +Optional SKÅDIS panel shown in position. Add the mounting surface or leave the frame open to suit your configuration.
TITAN · cooling layout
View +Cooling arrangement with the structure exposed. The case supports 240 mm or 360 mm liquid-cooling configurations.
TITAN · open reverse layout
View +Rendered build configuration showing the open-frame design. PC components illustrate a possible assembly; campaign contents will be listed separately.
TITAN · bare reverse structure
View +A closer view of the mounting structure and component interfaces, showing how the modular layout comes together.
TITAN · graphics-card side
View +Graphics-card side of the build. Cards up to 380 mm long and 1–4-slot configurations are supported.
TITAN · handle and armor detail
View +Close-up of the case geometry, handle and armor surfaces. Optional modules let you change the finished silhouette.
TITAN · open reverse with PSU mount
View +Rendered build configuration showing the open-frame design. PC components illustrate a possible assembly; campaign contents will be listed separately.
TITAN · open motherboard tray
View +Rendered build configuration showing the open-frame design. PC components illustrate a possible assembly; campaign contents will be listed separately.
No renders in this category.
Get the files.
Or get the case.
Two separate upcoming crowdfunding campaigns. Choose 3MF digital files and make the case yourself, or order the physical case from us.
Get the 3MF files.
Choose the digital version of TITAN, print the parts on your own equipment and assemble your build. A printer, filament and any required assembly hardware are separate from the digital files.
- 3MF route for self-printing
- Print the modules for your configuration
- Selected editable STP components planned
Get the physical case.
Prefer to buy TITAN as a physical product? Choose the hardware campaign and explore the offered case and module configurations. Exact contents and assembly requirements will be listed with each reward.
- Physical case made by ExtruFrame
- Case and module options in the campaign
- PC hardware is separate unless stated
